Let’s look at how to add a new map to Iris.

Step 1
Step 2

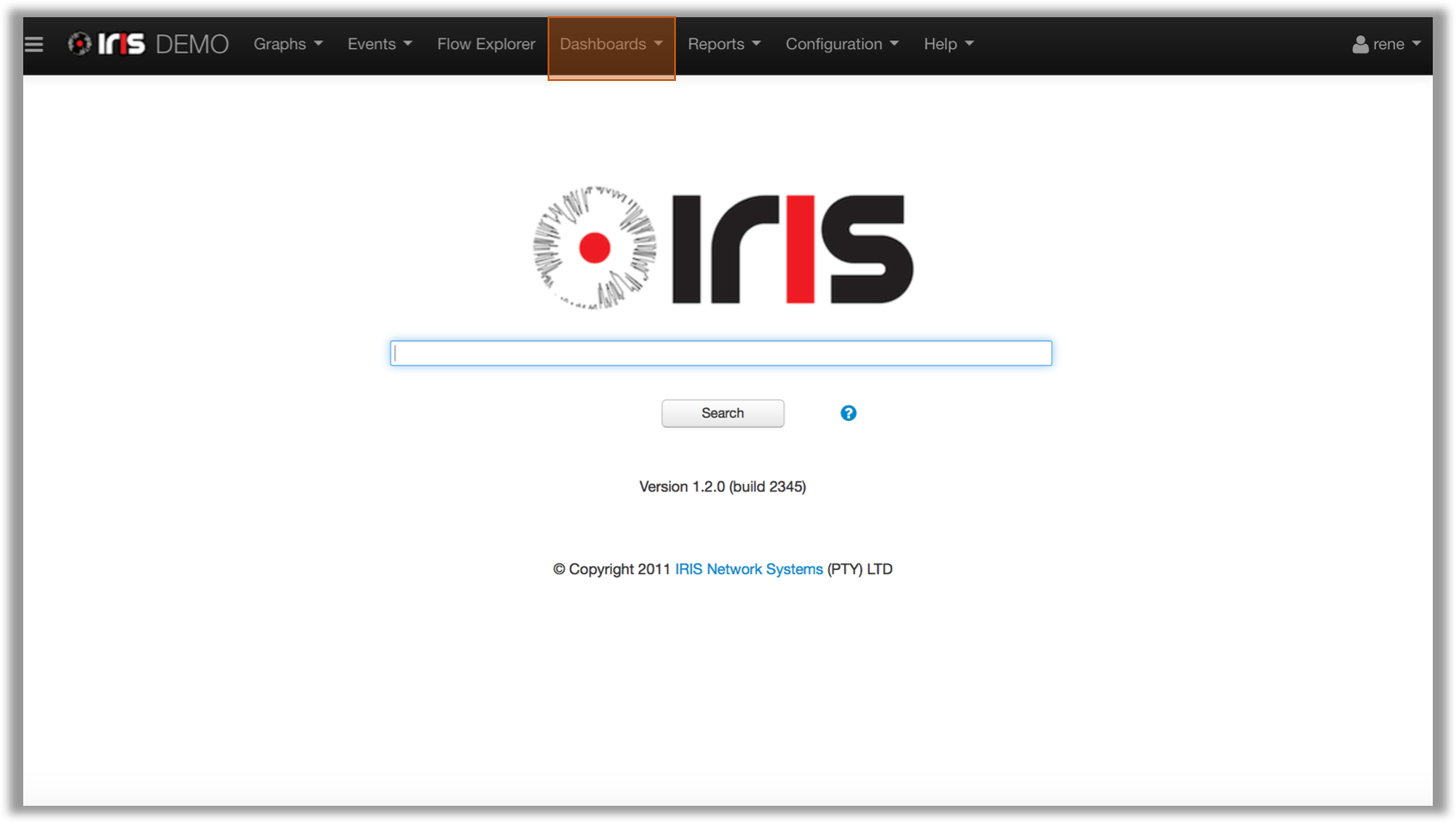

  • Select Dashboards from the navigation bar at the top of your screen.

  • Select Maps Visualisation from the drop-down.
Step 3

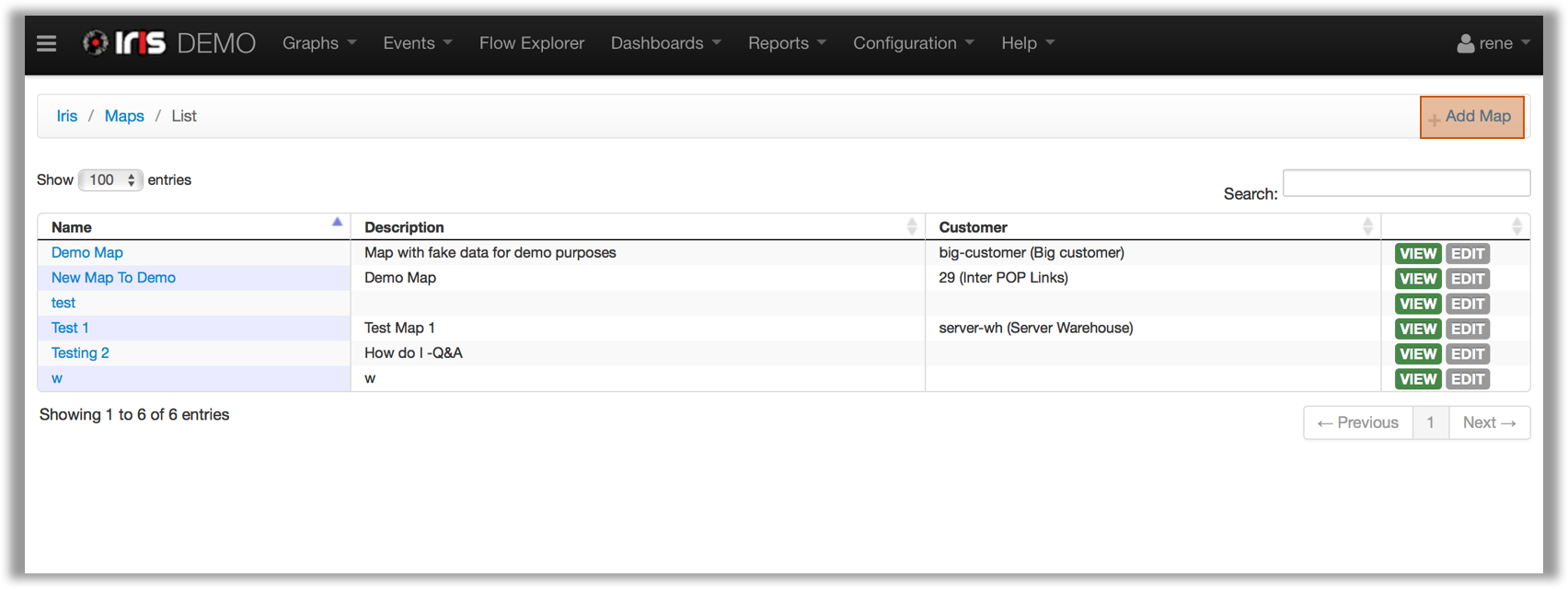

  • Click Add Map on the top right of your screen.
Step 4

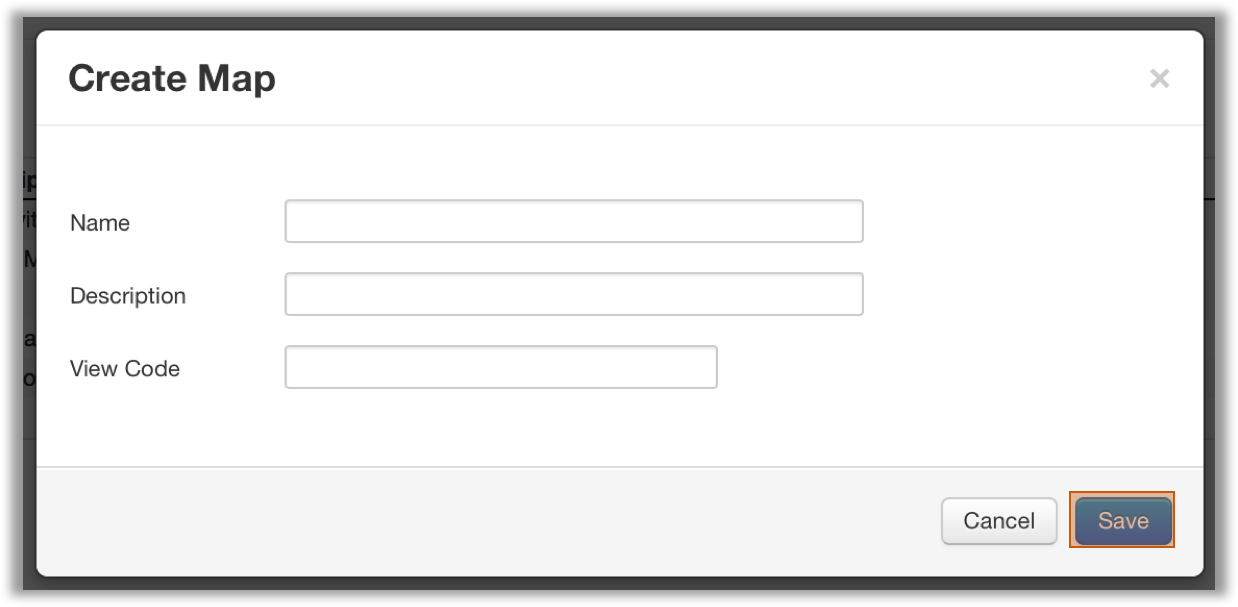

  • The Create Map pop-up will be displayed.
  • Type in a name for the map in the Name field.
  • Type a meaningful description for the map in the Description field.
  • Type the View Code in the View Code field. This is used to make the map available to a specific customer. If this is left blank, only IRIS-ADMIN will be able to view these maps. Start typing the customer name and drop-down list of names with customers starting with what you have typed will appear.
  • Click Save.
Your map will now appear in the list as shown in Step 3 above. Select the map by clicking the VIEW button.
