Add a node
Modified on: Wed, 18 Mar, 2020 at 11:34 AM

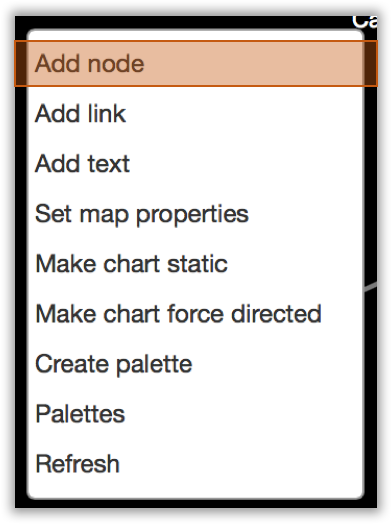

Right-click on the map canvas. The drop-down menu will be displayed.
Click Add node.

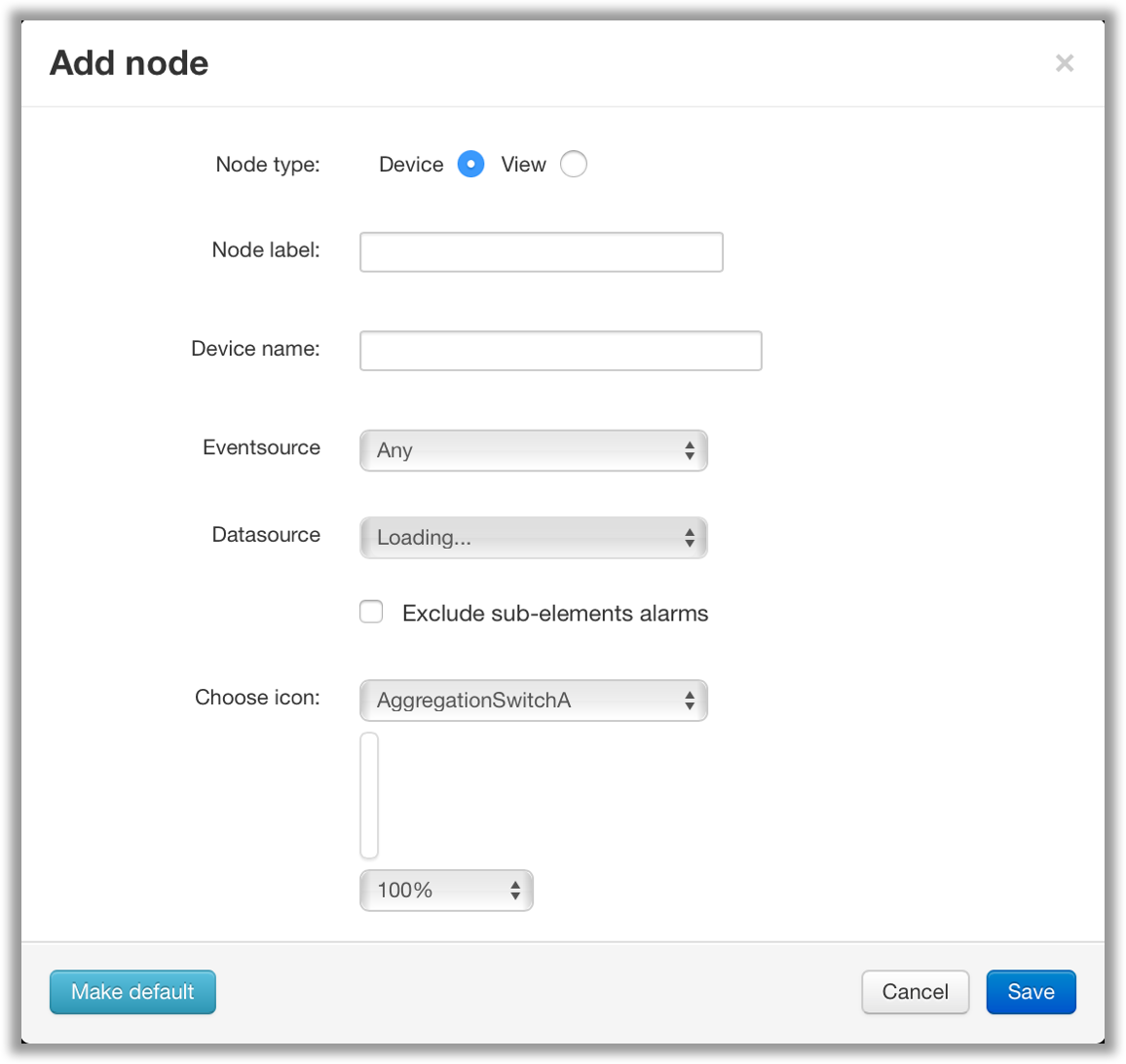

|The Add node pop-up will be displayed.|
|Node type||Select whether the node is a device or a view.|
|Node label||Choose a meaningful label.|
|Device name||Start typing a device name and then choose the device name from the drop-down list.|
|Eventsource||This list is derived from the Current alarms table and you can select the source required from the drop-down.|
Leave as default Any for all events.
Some examples of event sources are:
- Threshmon -> Threshold Breaches
- SYSLOG -> Syslogs being sent to Iris
|Datasource||This list is derived from the Current alarms table and you can select the source required from the drop-down. Leave as default Any for all events.|
Some of the more common data sources are:
- itraffic -> Interface Traffic
- unixServerStorage -> Storage on Unix Devices
|Choose icon||Select the icon you wish to depict from the drop-down.|
|Select the size of the icon. You can make it smaller or larger from the drop-down list.|
|Tick the Display glyph icon to indicate the alarm status of the node.|
Click here for the next article on Maps.
